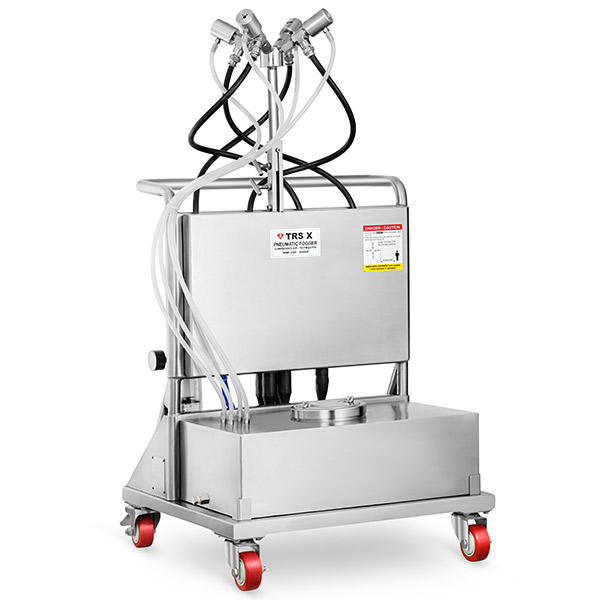

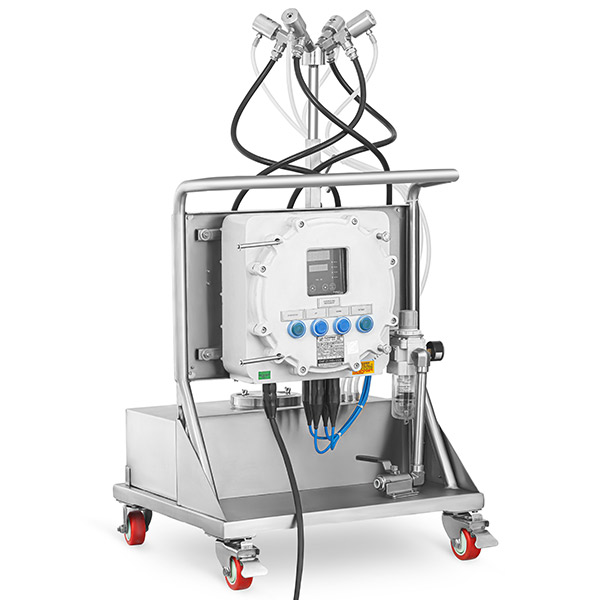

Pneumatic Dry Fog Generator System
The TRS X Pneumatic Dry Fog Generator System is ideal for bio decontamination for API production plants, whose various areas requires explosion proof, flameproof grade pneumatic operated + electric operated fogger system.
With all the advantages of TRS 01, TRS01 flexible, it is flame proof grade / FLP grade pneumatic operated + electric operated fogger system specially designed for API production plants, microbiology labs in API plants.
Highly effective in bio decontamination when used with VIROSIL PHARMA, PERASTERILE, SILVICIDE, VIREX, HUWASAN, ENVODIL, MINN CARE, SANSOIL disinfectants and many H2O2 based disinfectants, fumigants, bio decontamination solutions.
Driven by 70 CFM compressed air @ 87 PSI, it atomizes disinfectant solutions into ultrafine dry fog that is evenly distributed in all directions. This complete and efficient dispersion process ensures thorough coverage, penetrating all corners of the treated area for maximum decontamination.
Perfect for application where speedy and efficient aerial disinfection is of the utmost importance, the TRS X delivers maximum disinfection performance.
The TRS X’s automated process, accurate dispensing; dry fog atomization provides a safe, sanitary environment in API plants, ACTIVE PHARMA INGREDIENT production areas & microbiology laboratories.
- IP-66, complies to ZONE 1, Gas group IIC, Temperature class T5.
- CCOE / PES0 Certified.
- Facilitates Automatic Nozzle Operation & Machine Control.
- Atomizes chemical solutions using compressed air.
- Projects fine, “dry” fog particles at distances up to 40′ in 4 opposite directions.
- Unique system of automatic operation of control valves maximizes nozzle performance, ensures ultra-fine aerosol generation & spread in all directions.
- Compatible with (H2o2 + silver) , ( H2o2 + per acetic acid) based disinfectant formulations.
- Effective dispersion & penetration into all inaccessible areas.
- Control unit allows selection of 4 directional mode or two directional & single directional mode.
- Robust construction, Mobile system can be used in multiple locations.
- Sanitary construction using stainless steel 316 for piping, nozzles, air and liquid contact parts.
- Range of precision metering tips for dry fog quality variation.
- Venturi action draws pre-diluted chemicals and disinfectants.
- Digital timer facilitates auto START & auto OFF operations.
- Variable height adjustment to sanitize areas with different height.
- Requires 70CFM of compressed air @ 87PSI (6 bar)
- Power supply 5amp, 240Vac.
- Room Treatment capacity: 35000cuft /1000m3.
- Disinfectant consumption: 250-400 ml per
- 1000cuft of space depending upon quality of fog treatment selected.
- Stainless steel grade 316 Tank: Capacity 20 litres. OR Engineering plastic tank capacity -20 Litres
- All stainless steel 304, 4- wheel trolley for Mobile unit.
- Tubing: Silicon, medical grade.
- Required air supply line connection -1/2” or 12mm tube.
- Dimensions: 580 L X 620 W X 1000 -1150 H(mm)
- Empty weight: 47 kg (with 20 litres tank)
Applications
Hospital
Pharmaceutical Plants
Food Processing
Laboratories
Animal House
Hatcheries
