Dry Fogger System, Pneumatic Operated

TRS Compact : Pneumatic Fog Generator System

The TRS Compact is engineered to offer efficient disinfection and fluid dispersion in a compact, space-efficient package. Made with the latest technology, the unit offers precise and consistent application for aerial disinfection or special atomized protocols. Its small size positions is ideally made for application in environments where space is a constraint, like clinics, offices or small production environments, without compromising on performance or reliability.

Conceived with robust components and an operator-friendly control system, the TRS Compact can withstand extended use in extreme environments. It is easy to install and use with, keeping downtime and training to a minimum. By integrating best-of-class performance features into an affordable design, the TRS Compact is an economical, effective solution that is an excellent option for many applications.

  • Airborne disinfection with PNEUMATIC FOGGER
  • TRS Compact uses compressed air 70 CFM @ 87 PSI.

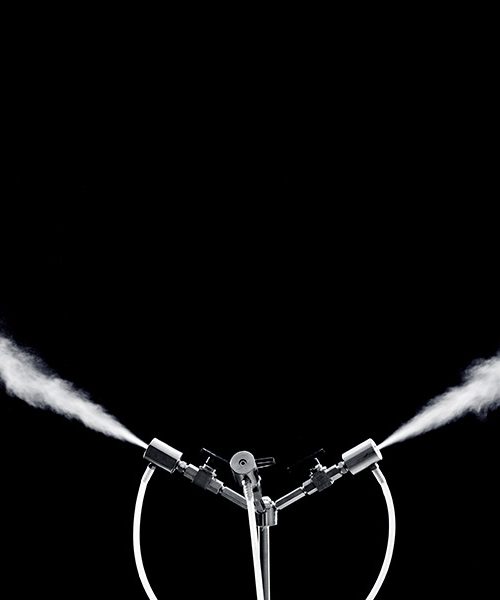

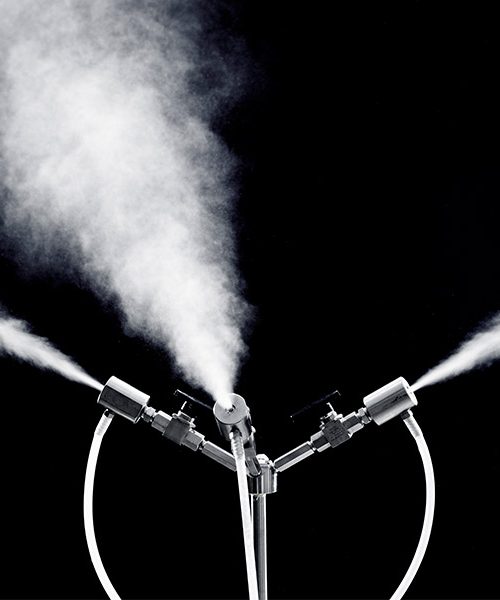

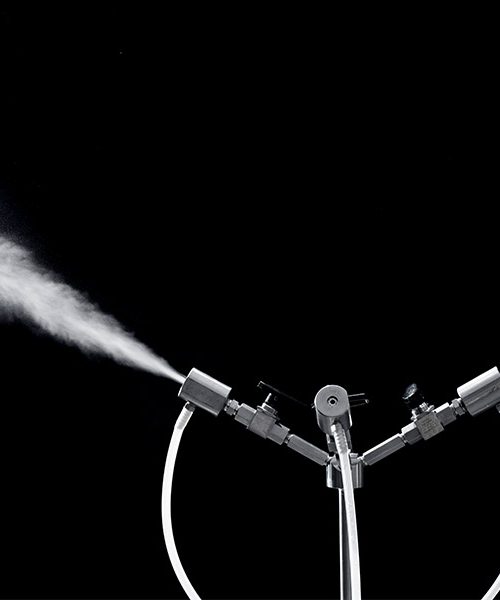

  • It atomizes the solution into ultra-fine, Aerosol fog particles in three directions.
  • Pharmaceutical Plants: Sterile areas
  • Laboratories: Microbiology, Tissue Culture
  • Food Processing, Animal Houses, Hatcheries
  • Atomizes chemical solutions using compressed air.
  • Projects fine, Aerosol fog particles at distances up to 25′ in 2 opposite directions.
  • Compatible with (H2o2 + silver), (H2o2 + peracetic acid) based disinfectant formulations.
  • Effective dispersion & penetration into all inaccessible areas.
  • Robust construction, mobile system can be used in multiple locations.
  • Sanitary construction using stainless steel 316 for piping, nozzles, air and liquid contact parts.
  • Precision metering tips for dry fog quality variation.
  • Venturi action draws pre-diluted chemicals and disinfectants.
  • Variable height adjustment to sanitize areas with different height.

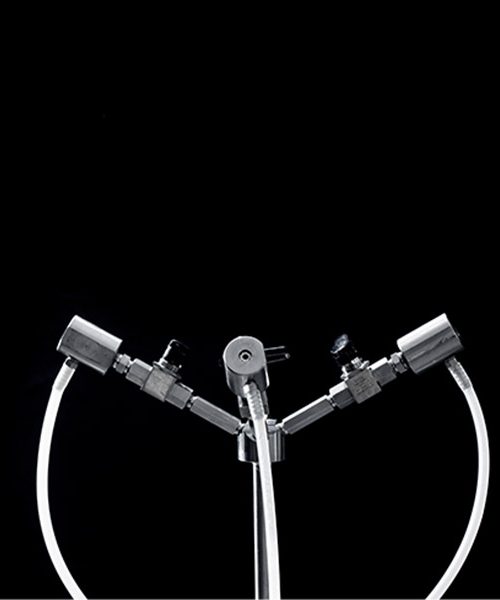

  • Three nozzle simultaneous operation.
  • Requires 70CFM of compressed air @ 87PSI (6 bar).
  • Operates without electric supply. (Manual Operation)
  • Room Treatment capacity: Up to 15000cuft
  • Disinfectant consumption: 200-400 ml per1000cuft of space depending upon quality of fog treatment selected.

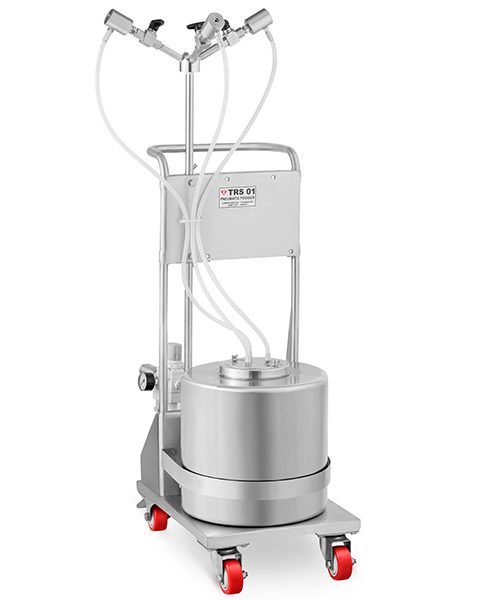

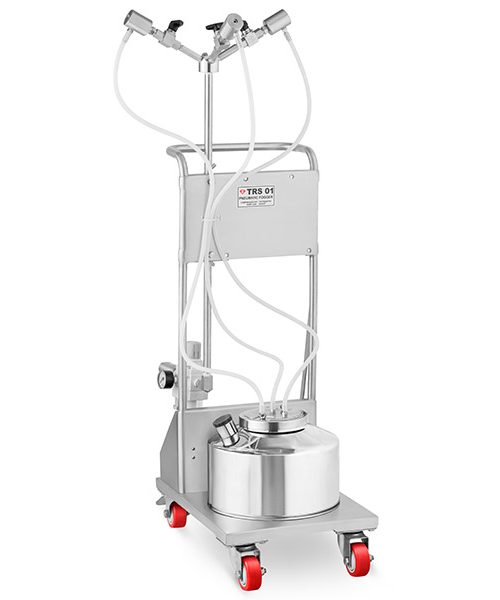

  • Stainless steel grade 316 Tank: Capacity 9 or 22 liters.
OR

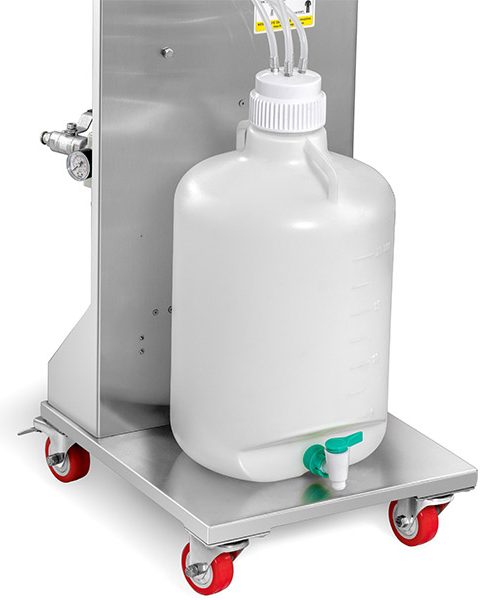

  • Engineering plastic tank capacity -12 Liters or 20 Litres
  • All stainless steel 304, 4 – wheel trolley for portability.
  • Tubing: Silicon, medical grade.
  • Required air supply line connection -1/2”.
  • Dimensions: 350 L X 500 W X 1200 H (mm)
  • Empty weight: 29 kg (with 22 liter SS tank) 28 kg (with 9 liter SS tank

Applications

Pharmaceutical Plants

Food Processing

Laboratories

Animal House

Hatcheries
