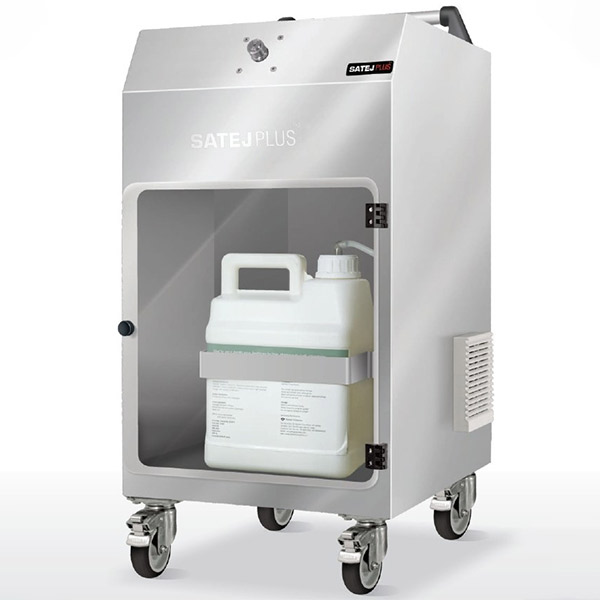

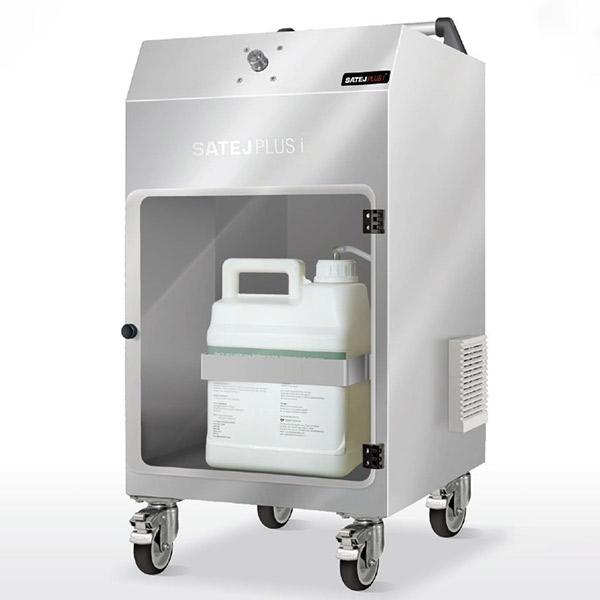

Nebulised H2o2 Dry Fog Generator
The SATEJ Plus i is an advanced bio decontamination system that leverages nebulisation technology to emit dry fog of H2O2 based disinfectant. The system ensures uniform coverage across the space under treatment. The systems are designed to produce a fine, uniform mist that penetrates deeply on surfaces, providing total pathogen destruction .The H2O2 dry fog generator SATEJ Plus i enables accurate & reproducible airborne decontamination process in Microbiology Laboratories, tissue culture labs, Research Institutes for virology & immunology, Pharmaceutical production areas, sterile areas, Injectable & vaccine manufacturing plants, Animal houses, R&D laboratories, operation theatres of hospitals, ICUs, healthcare centres.
Ensuring uniform coverage SATEJ Plus i sees to it that hard-to-reach surfaces receive the same treatment as easily accessible surfaces, thus being highly effective in eliminating pathogens, infection threats, microorganisms.
Engineered to be tough and operationally efficient, the SATEJ Plus is designed & manufactured from pharmaceutical clean room compliant sanitary materials.

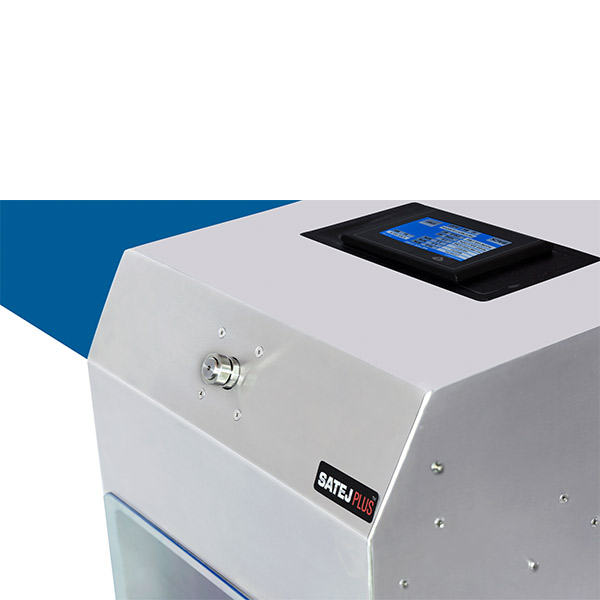

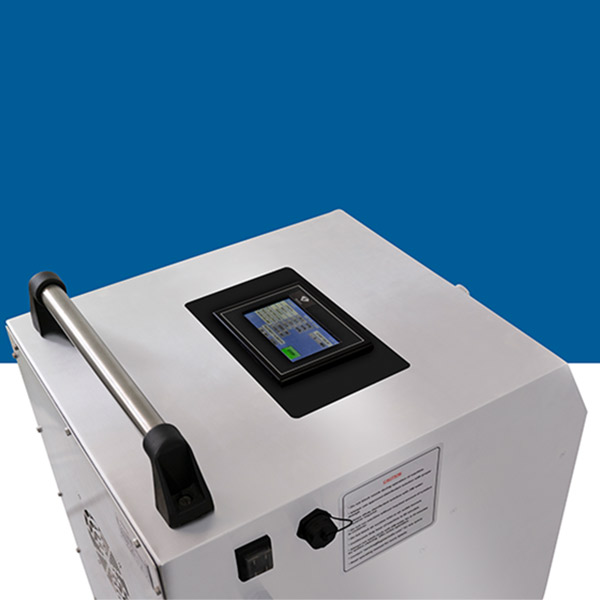

Equipped with touch screen HMI interface and programme, SATEJ Plus i facilitates digitally controlled, accurate, reproducible & automated disinfection process cycle with process data retrievable for each bio decontamination treatment.
Equipped with Easy to clean, non-clogging nozzle design the dry fog system provides long-term, consistent performance as well as easy integration with existing bio cleaning processes.
- Generates dry disinfection vapour of H2O2 or H2O2 based disinfectants.
- Gas like diffusion and uniform exposure.
- Single nozzle nebulised fog output.
- Enhances standard bio cleaning process.
- 6% to 8% H2O2 formulation, final diluted product.
- Microbiologically tested.
- No wetness on glass, surfaces post treatment.
- Post treatment no residue, once HVAC is restarted.
- Touch screen HMI offers an easy device set up.
- Digitally controlled dispensing & disinfection process cycle.
- Accurate, Consistent and Reproducible results.
- 100 room’s details saving facility with Length X Width X Height and other details saving facility, to execute PRE SAVED accurate treatment cycle.
- Password protected & defined USER and MANAGER rights.
- No requirement of Aeration, as recommended dosage 6-8% of H2O2 formulations. Dosage @ 12ML/M3 or suitable treatment (various choice of application dosages)
- Economical and completely indigenised system.
- Microbial study reports available.
- Treatment Date & Time
- User name, Room Name, Room volume
- Disinfectant Name, Total Consumption of
- Disinfectant in ml, Treatment duration
- Application dosage (options : 6ml/M3, 9ml/M3, 12ml/m3… 36ml/M3)
Applications
Hospital
Pharmaceutical Plants
Food Processing
Laboratories
Animal House
Hatcheries
