Nebulised H2o2 Dry Fog Generator

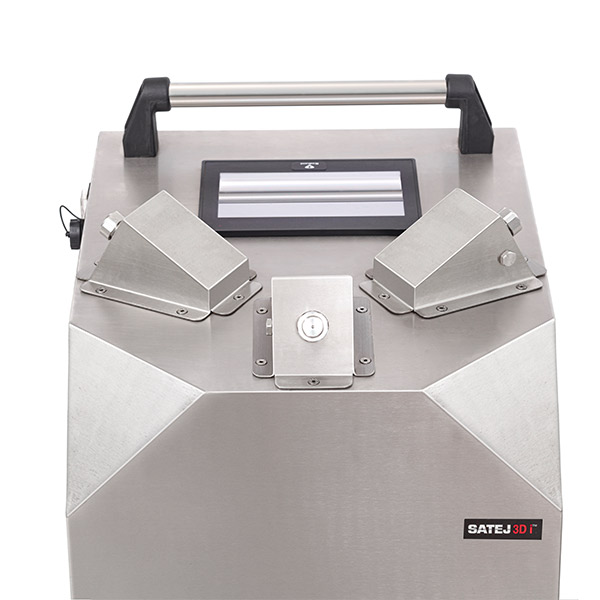

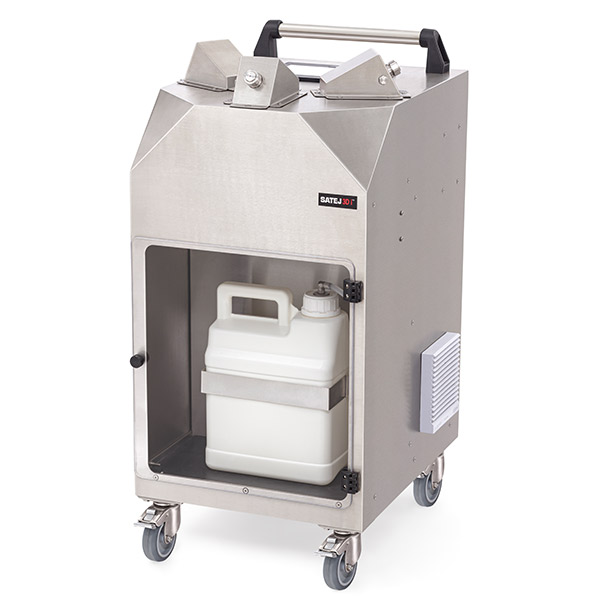

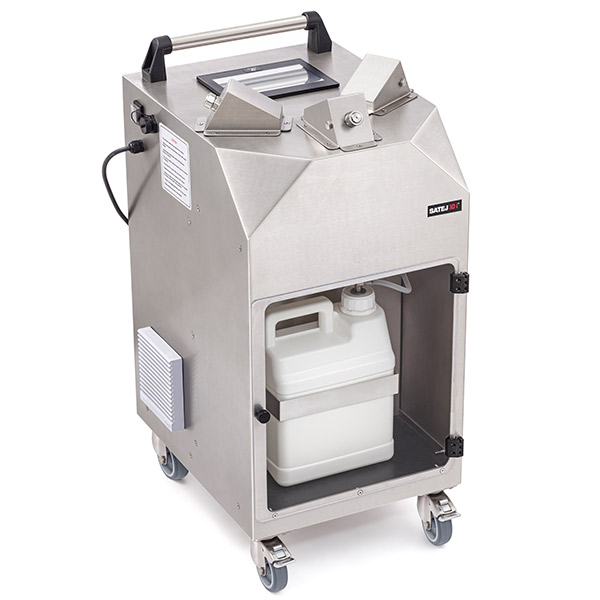

The SATEJ 3D i is an advanced bio decontamination system that leverages cutting-edge three-dimensional disinfectant nebulisation technology to emit dry fog of H2O2 based disinfectant. The system ensures uniform coverage across the space under treatment. The H2O2 dry fog generator SATEJ 3D i enables accurate & reproducible airborne decontamination process in Microbiology Laboratories, tissue culture labs, Research Institutes for virology & immunology, Pharmaceutical production areas, sterile areas, Injectable & vaccine manufacturing plants, operation theatres of hospitals.

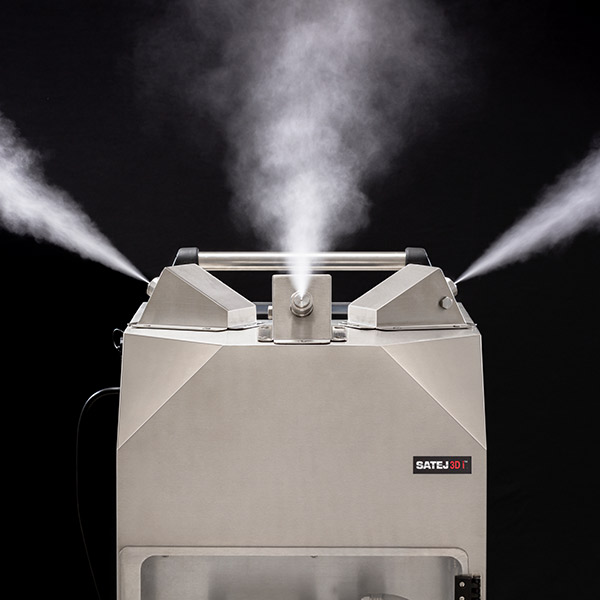

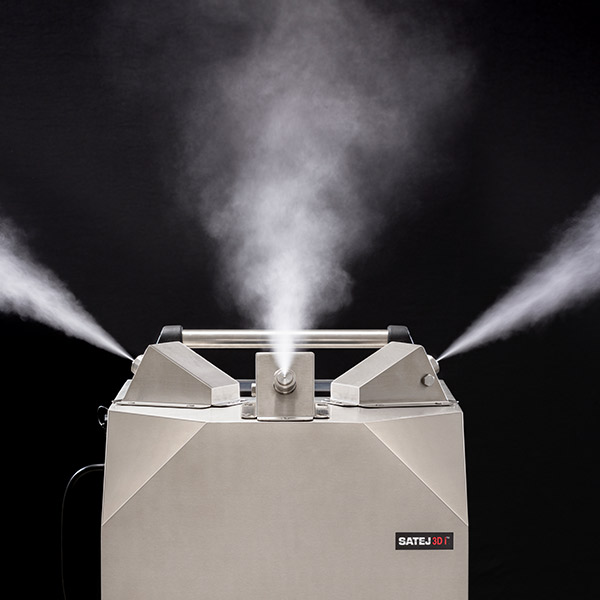

Generating 360-degree dry fog pattern, the SATEJ 3D i sees to it that hard-to-reach surfaces receive the same treatment as easily accessible surfaces, thus being highly effective in eliminating pathogens, infection threats, microorganisms.

Engineered to be tough and operationally efficient, the SATEJ 3Di is designed & manufactured from pharmaceutical clean room compliant sanitary materials.

Equipped with touch screen HMI interface and programme, SATEJ 3Di facilitates digitally controlled, accurate, reproducible & automated disinfection process cycle with process data retrievable for each bio decontamination treatment.

Equipped with Easy to clean, non-clogging nozzle design the dry fog system provides long-term, consistent performance as well as easy integration with existing bio cleaning processes.

  • Generates dry disinfection vapour of H2O2 or H2O2 based disinfectants.
  • Gas like diffusion and uniform exposure.
  • 3 Nozzle vaporization output ensures 360 deg treatment
  • Enhances standard bio cleaning process.
  • 6% to 8% H2O2 formulation, final diluted product, highly effective with SATEJ 3Di for bio decontamination.
  • Microbiologically tested.
  • No wetness on glass, surfaces post treatment.
  • Post treatment no residue, once HVAC is restarted.

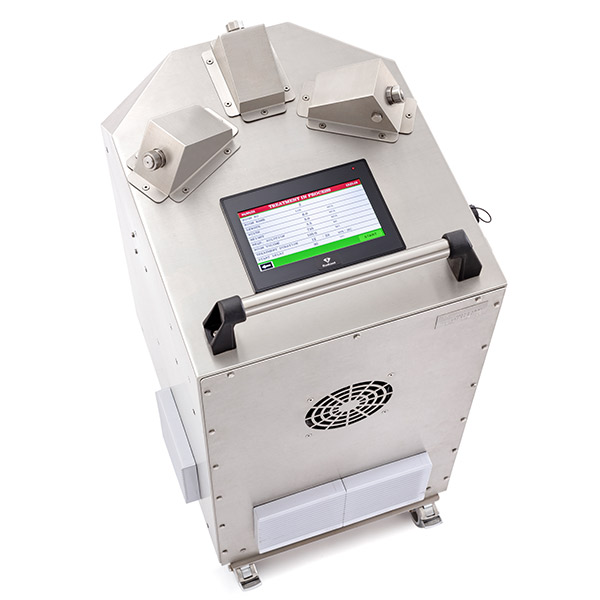

  • Touch screen HMI offers an easy device set up.
  • Digitally controlled dispensing & disinfection process cycle.
  • Accurate, Consistent and Reproducible results.
  • 100 room’s details saving facility with Length X Width X Height and other details saving facility, to execute PRE SAVED accurate treatment cycle.
  • Password protected & defined USER and MANAGER rights.
  • No requirement of Aeration, as recommended dosage: 6-8% of H2O2 formulations.
  • Application Dosage @ 12ML/M3 or suitable treatment (various choice of application dosages)
  • SATEJ 3D i offers Sustainable use protocol compared to use of 30 – 35% H2O2 in other systems which are highly corrosive, difficult to handle, and expensive.
  • Economical and completely indigenised system.
  • Treatment Date & Time
  • User name, Room Name, Room volume
  • Disinfectant Name, Total Consumption of Disinfectant in ml,
  • Treatment duration
  • Application dosage (options : 6ml/M3, 9ml/M3, 12ml/M3,15ml/M3.… 36ml/M3)

Applications

Hospital

Pharmaceutical Plants

Food Processing

Laboratories

Animal House

Hatcheries
