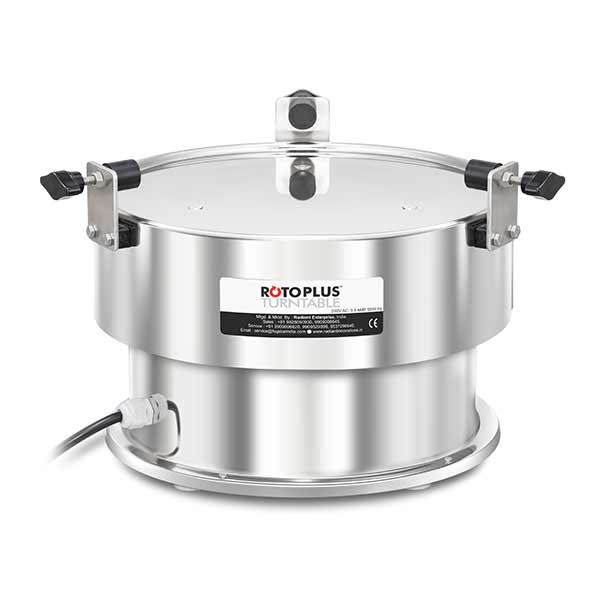

Rotoplus Turntable 05 rotates YANTRA 05, YANTRA 09, YANTRA 12 airborne disinfection fogger machine placed at its top at 1rpm, facilitating 360 degree disinfection treatment.
It has unique technical feature of providing uninterrupted power supply to the fogger machine even while in rotation.
Rotoplus Turtable 05 (with locking attachment) has unique clamping sets (3sets) to safely lock the fogger machine on top of the Turntable & YANTRA 05 + ROTOPLUS 05 becomes one single unit.
YANTRA + ROTOPLUS combination is a state-of-the-art airborne disinfection system that merges the strength of dry aerosol fogging of YANTRA with a 360° rotating system i.e ROTOPLUS turntable for enhanced coverage. Accuracy and even disinfection treatment are the important aspects of this advanced system, providing even distribution of disinfectants in all directions to all accessible and inaccessible areas of Room under treatment.
With its turntable model, ROTOPLUS enhances the space coverage capacity of the YANTRA disinfectant fogger system considerably, making it a perfect solution for aerial disinfection in pharmaceutical factories, food processing factories, animal housing, and medical device manufacturing. The ultra-fine aerosol offers complete bio decontamination with minimal wetness, safeguarding sensitive equipment. With the ability to treat large areas with maximum contact time, YANTRA + ROTOPLUS is the perfect solution for those sectors that require the best in contamination control and hygiene.
- Enhances fogger machine’s space coverage & airborne disinfection capacity
multiple times 360 degrees aerial treatment. - Uniform treatment of entire space/air.
- Results in reduction of no of machine required per area/space while treating
large areas. - Saving of time taken for treatment.
- Validation of aerial treatment becomes easier.
- Weight carrying capacity while in rotation – 25kg.
- Power supply – 230V AC, 50 or 60 Hz.
- Power supply – 120V AC, 50 or 60 Hz (Available on special demand).
- Machine body – stainless steel. Rotation Speed – 1 rpm.
- 360 degrees aerial treatment, 20000cuft capacity.
Technical specification may change without notice.
Applications


Hospital


Pharmaceutical Plants


Food Processing


Laboratories


Animal House


Hatcheries
